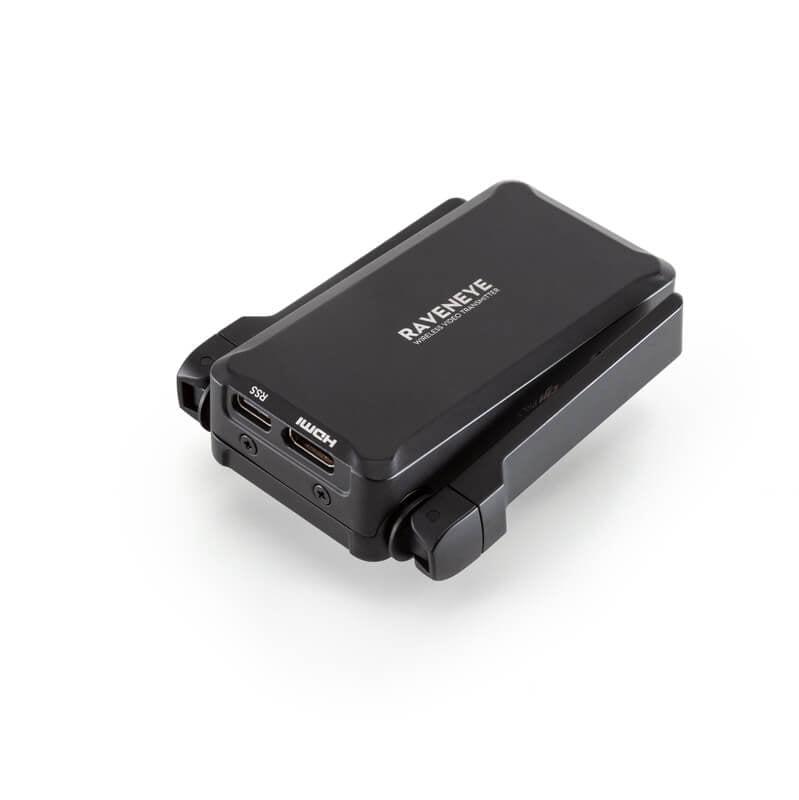

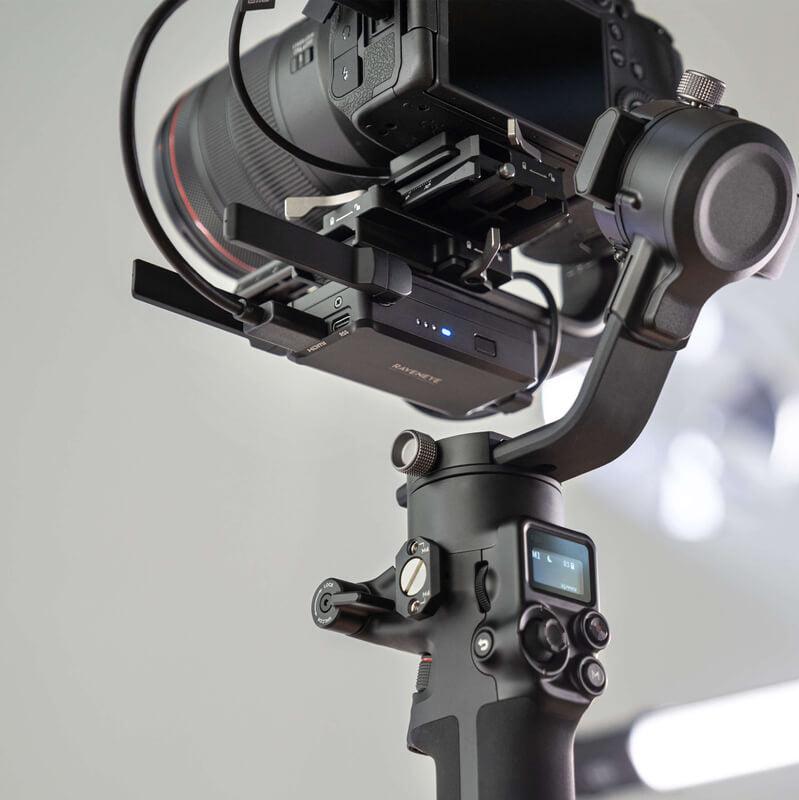

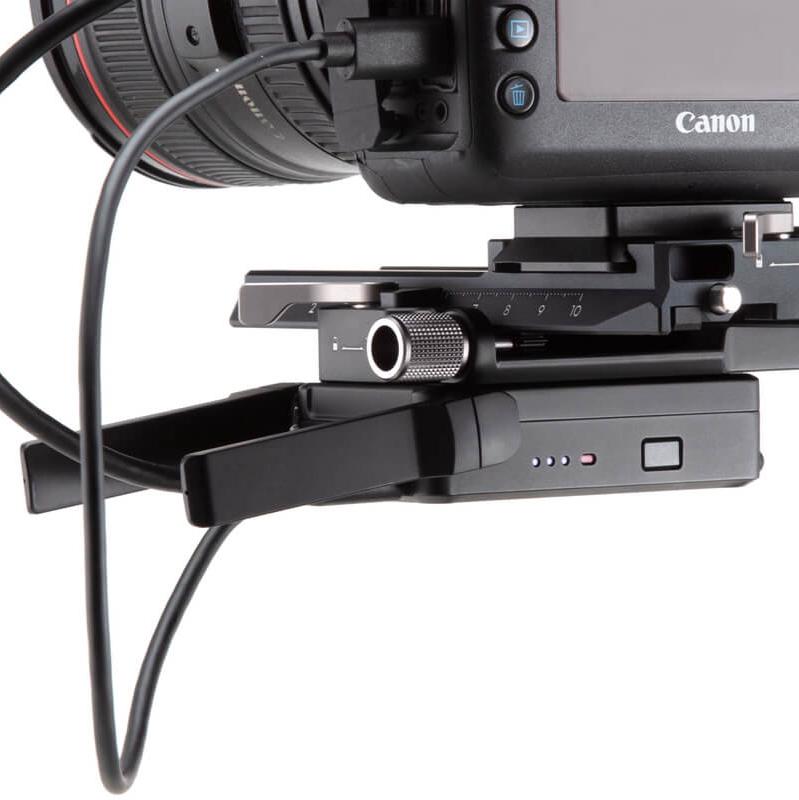

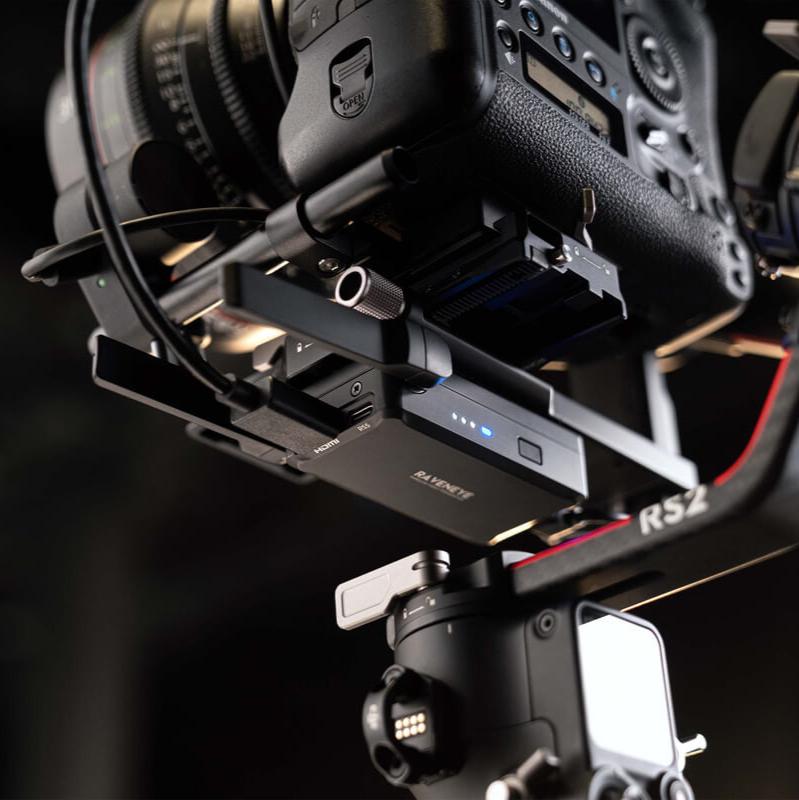

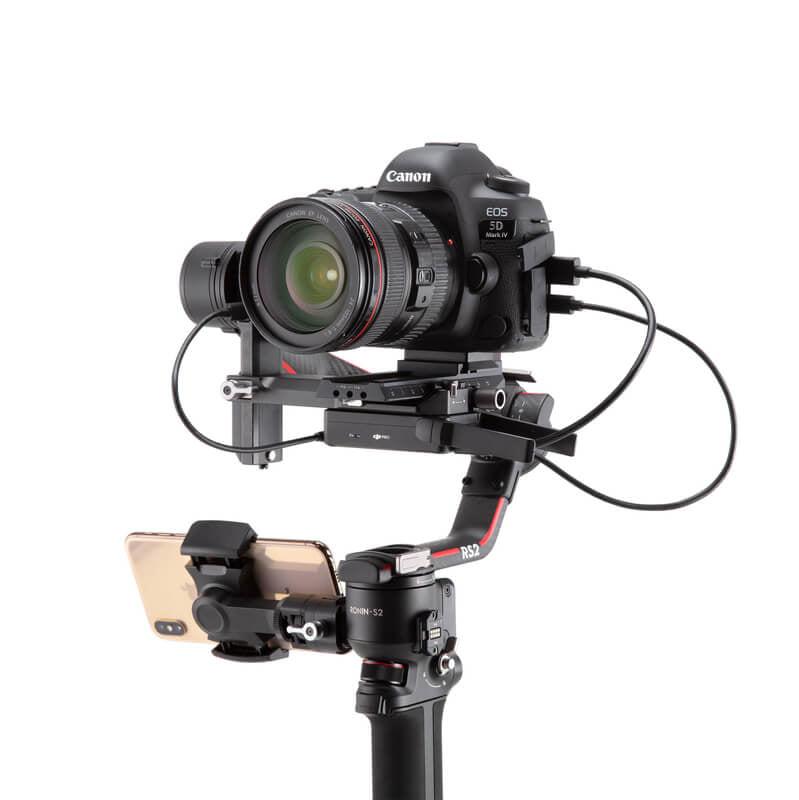

Med DJI Ronin-bildesenderen støttes følgende funksjoner: ActiveTrack 3.0, Force Mobile, fjernkontroll av gimbal med virtuell joystick, manuell fokusering, justering av gimbalparametere, justering av kameraeksponering og mer. Koble DJI Ronin-bildesenderen til kameraet via en HDMI-kabel og til smarttelefonen via Wi-Fi for å sjekke kameraets direktevisning i Ronin-appen. Når du bruker DJI Ronin-bildesenderen med DJI RS 4 Pro/DJI RS 2/DJI RS 3 Pro, kan du også sjekke kameraets direktevisning på gimbalens innebygde skjerm.
For more information on supported camera models of the DJI Ronin Image Transmitter, please refer to the Ronin Series Compatibility Search page.
Note: When using the DJI Ronin Image Transmitter with DJI RS 4/DJI RS 3/DJI RSC 2, live camera view is not supported on the built-in screen of the gimbal. You can check the live camera view on the Ronin app.

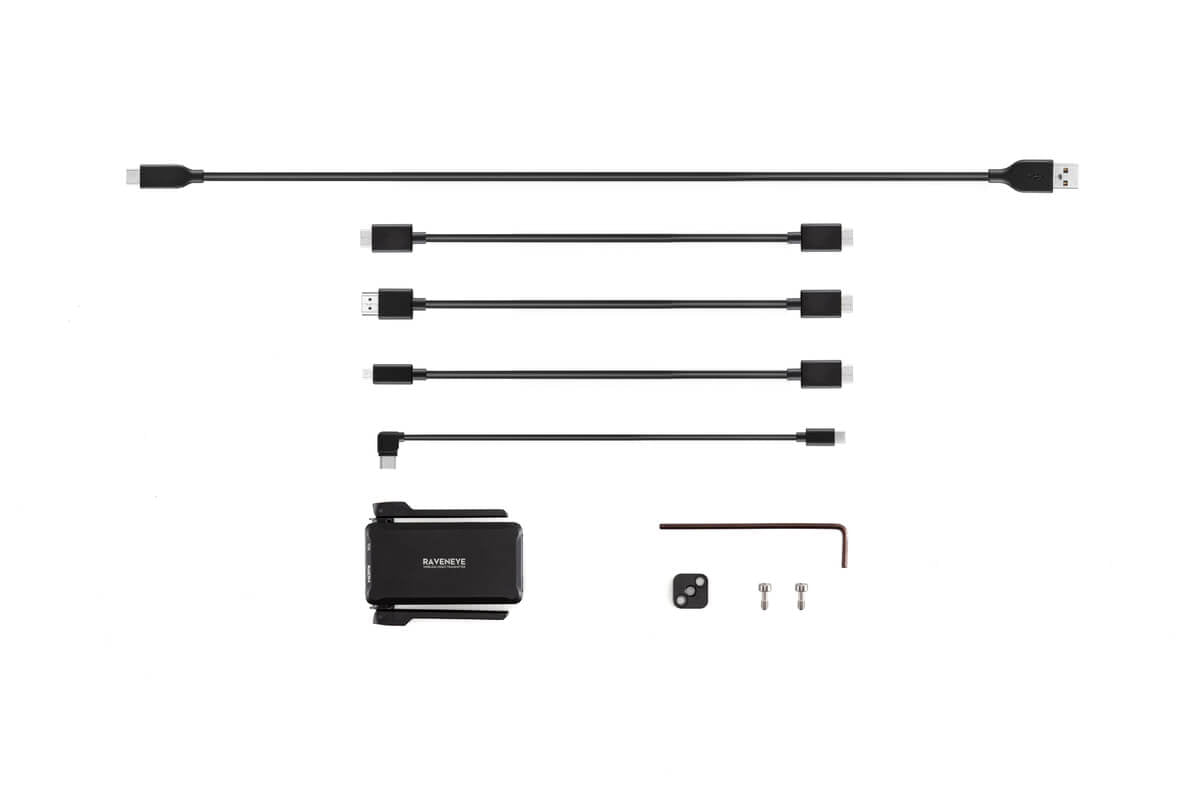

In the box:
Image Transmitter × 1
Cold Shoe to 1/4''-20 Adapter × 1
USB-C Charging Cable (40 cm) × 1
USB-C Power Cable (20 cm) × 1
Mini-HDMI to HDMI Cable (20 cm) × 1
Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
M4 Screw × 2
Allen Wrench (3 mm) × 1
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specs:
Working Frequency: 2.400-2.4835 GHz，5.725-5.850 GHz
Weight: 126 g
Dimensions: 82 mm x 63 mm x 24 mm
Transmission Power (EIRP):
2.400-2.4835 GHz:
＜25dBm (FCC)
＜20dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
＜25dBm (FCC/SRRC)
＜14dBm(CE)
Compatibility:
DJI RS 4 Pro
DJI RS 4
DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2
